SWCE-1000 is a range of MEF CE2.0 compliant Carrier Ethernet switches and Ethernet Demarcation Devices providing 10 Gigabit ports with Sync-E and PTP synchronization to access the Carrier Ethernet network

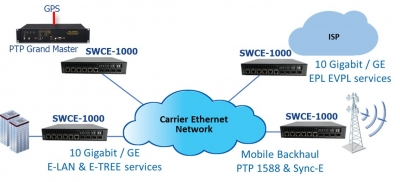

SWCE-1000 is a 10Gigabit Carrier Ethernet switch and EDD 10 aimed at delivering Carrier Ethernet Services for many application requirements including entreprise network access or 4G/5G mobile backhaul.
SWCE-1000 portfolio is made of several products having GE or 10GE access ports, Sync-E synchronization and optical SFP or copper RJ45 User interfaces.
SWCE-1000is an industry grade and compact product that fits in any environment such as enterprises, base stations or outdoor street cabinets.
SWCE-1000 is based on last generation Ethernet communication processors and ASIC. It embeds a number of hardware accelerators for wirespeed Ethernet switching, synchronization, and Operation And Maintenance traffic control (OAM). This Service-Aware architecture provides the SWCE with best performance whatever Ethernet interface load and system configuration especialy with large number of EVC and OAM services.
MEF CE2.0 Carrier Ethernet functions give Operator class services and many advantages compared with other technologies:
- EDD Ethernet Demarcation Device with multiple NNI GE / 10GE SFP ports and up to 8x UNI Gigabit interfaces,
- Managed services for point to point and multipoint interconnections with E-LINE, E-LAN and E-TREE topologies,
- Availability, throughput, latency, QOS guaranties - SLA,
- Native Ethernet standards for security - authentication, ACL,
- High performance and cost effective technology with easy access to technical skills and resources,
- Native standards for traffic management and Operation And Maintenance functions - OAM.
SWCE range of products is a high reliability industry grade design. It comes with a choice of DIN rail or 19'' compact format, 110-230 Vac mains power input or 24-48 Vdc power converters with redundancy for best power failure resiliency.
- up to 4x 10 Gigabit Ethernet ports, SFP+ slot for optical modules
- up to 6x 2.5GE / GE multi-rate SFP ports, SFP slots for optical pour modules
- up to 10x GE SFP ports , SFP slots for optical pour modules
- up to 4x Ethernet ports, RJ45 10/100/1000BT
- MEF CE2.0 Services : E-LINE / E-LAN / E-TREE, 4K EVC, OAM 802.3ah, Y.1731
- PTP IEEE 1588 v2 Synchronization : BC and TC modes, P2P and E2E with 1 or 2 step clock mode, Telecom Profile
- Sync-E Synchronization, G.8262 avec SSM
- STP, RSTP, MSTP, ERPS G.8032, G.8031
- 802.1Q VLAN, MVR, GVRP
- Link aggregation, LACP
- QoS, Flow Control, Priority Queuing with 8 priority queues per interface, rate limiting
- IGMP snooping, filtering
- Packet filtering at layer 2/3/4, 802.1X, Radius
- IP static routing, IP v4 and IP v6
- 802.1X, Guest VLAN, Radius, TACACS, ACL
- Administration: telnet, ssh, http, https, snmp v1/v2/v3, web / CLI, syslog, RMON
- Dimensions WxDxH: 218 x 230 x 40 mm
- Operating temperature : -20 to +65 °C
- Power supply input : 48 Vdc, mains 110-230 Vac convertisseur on option
SWCE-1208-440-S-D EDD CE2.0, 4x SFP+ 10GE, 4x SFP GE, Sync-E, 48 Vdc
SWCE-1208-404-S-D EDD CE2.0, 4x SFP+ 10GE, 4x RJ45 GE, Sync-E, 48 Vdc
SWCE-1208-260-D EDD CE2.0, 2x SFP+ 10GE, 6x SFP GE, 48 Vdc
SWCE-1208-260-S-D EDD CE2.0, 2x SFP+ 10GE, 6x SFP GE, Sync-E, 48 Vdc
SWCE-1208-224-D EDD CE2.0, 2x SFP+ 10GE, 2x SFP GE, 4x RJ45 GE, 48 Vdc
SWCE-1208-224-S-D EDD CE2.0, 2x SFP+ 10GE, 2x SFP GE, 4x RJ45 GE, Sync-E, 48 Vdc
SWCE-1120-10-D EDD CE2.0, 10x SFP GE, 48 Vdc
SWCE-1120-10-S-D EDD CE2.0, 10x SFP GE, Sync-E, 48 Vdc
SWCE-1120-64-D EDD CE2.0, 6x SFP GE, 4x RJ45 GE, 48 Vdc
SWCE-1120-64-S-D EDD CE2.0, 6x SFP GE, 4x RJ45 GE, Sync-E, 48 Vdc
