SWMDH-9608 & 9312 Series
The SWMDH-96 Series is a highly reliable Gigabit Managed Ethernet Switch.
Its IEC61850-3 compliance allows it to be core part in the IEC 61850 network in power substations and control centers.
The series meets the IEC61850 applications and to support the transmission of GOOSE messages used for fast communication between IEDs.
The IEEE1588 Precision Time Protocol capabilities allow the deployment of SWMDH-96 Series in networks with stringent time Synchronization requirements. It can act as hw-assisted End-to-End transparent clock providing nanosecond-accurate correction-field packet-update and as a sw-assisted boundary clock.
The device equips up to 8x10/100/1000BASE-T(X) RJ-45 ports and up to 4 1000BASE-X SFP ports. With its high performance, it provides network redundancy self-recovery mechanisms is less than 20ms on full load that enables the user to build a reliable network through a redundant ring topology. ERPS/STP/MSTP/RSTP/MRP (Manager/ Client) and many other compatible rings are supported. With a Multifunctional web dashboard, its offers intelligent features such as Quality of service (QoS), Virtual LAN (VLAN), IGMP, IGMP Snooping, Port mirroring and security.
The SWMDH-96 Series is designed to be used in core power utilities. It provides dual redundant power inputs with Reverse Polarity Protection and two sets of relay that allow the user build up a stand-alone fault alarm system. Its wide operating temperature of -40 to 85°C and DIN-Rail mounting capacities make it suitable to be used in remote substations where harsh environment and reliability is an issue.
SWMDH-96 is a product that specially fits with power station and substation application.

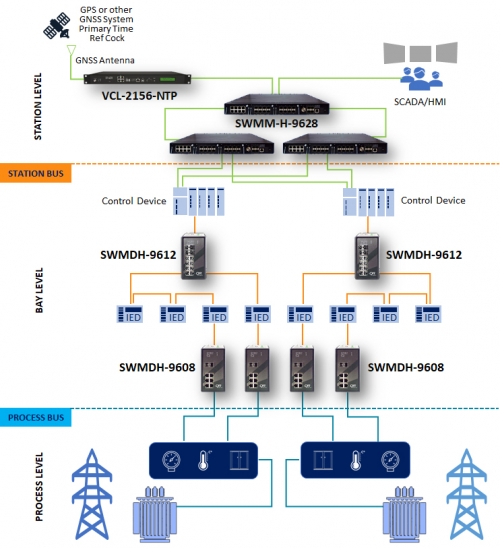

This product usually plays an important role at the bay level. With full gigabit ports, SWMDH-96 can help to transmit a bunch of data from process level to upper level. SWMDH-96 also supports IEEE 1588v2 HW-assisted End-to-End Transparent clock to deliver the precise time in power station or substation.
Switch properties:
| Priority Queues | 8 |
| VLAN Table | 4096 |
| MAC-Based VLAN | 512 |
| VLAN ID Range | VID 1 to 4094 |
| Trunk Group | 4 |
| Static IGMP Groups | 128 |
| Dynamic IGMP Groups | 256 |
| Mac Table Size | 16k |
| Packet Buffer Size | 1.5MB |
| Jumbo Frame | 9216 Byte |
SWMDH-9608-2SFP-DC
2*1000FX SFP; 6*1000TX RJ45; Power Input: DC
SWMDH-9608-2SFP-AC
2*1000FX SFP; 6*1000TX RJ45; Power Input: AC
SWMDH-9612-4SFP-DC
4*1000FX SFP; 8*1000TX RJ45; Power Input: DC
SWMDH-9612-4SFP-AC
4*1000FX SFP; 8*1000TX RJ45; Power Input: AC
