SWMD-H-16TG-4GSF-4SFP+
SWMD-H-16TG-4GSF-4SFP+ is based on the bran-new high-performance hardware and OS software system of independent intellectual property rights, supports rich Layer-2/Layer-3 routing and industrial ring network protocols.
SWMD-H-16TG-4GSF-4SFP+ adopts die-casting aluminium shell and standard 19 - inch rack- mounted installation, and provides redundant wide - voltage industrial power supplies.

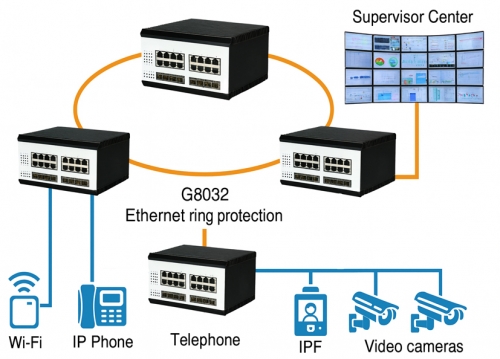

With the reliable industrial Ethernet ring technology, its hardware- based algorithm can ensure node self-healing time less than 5 milliseconds, and the ring network self-healing time less than 50 milliseconds (typical value).
SWMD-H-16TG-4GSF-4SFP+ with fanless design, low power consumption, wide temperature and wide voltage in compliance with strict industry standards, can adapt to harsh environment requirements for EMC, anti -vibration and shock- proof capabilities, IP40 protection level.
SWMD-H-16TG-4GSF-4SFP+ can be widely used in energy, transportation, industrial production, environmental protection, military industry.
Lightning protection level: 6KV.IP40 protection, industrial fanless thermal conduction.
Supports dual power input AC or DC.Business ports, management ports, power input terminals, and relay alarm output are located on the front panel, complying with industrial operation specifications.
Supports STP/EAPS/ERPS,Supports node self-healing time less than 5 milliseconds, and ring network self- healing time less than 50 milliseconds (typical value). Supports layer-3 static routing, dynamic routing (RIP, OSPF), Virtual Router Redundancy Protocol (VRRP). Supports virtual stacking.
Supports to form a self-healing ring between any two ports, and supports multiple independent self-healing rings.Provides Data Leakage Prevention (DLP), to quickly recover from network failures.
Supports simple network management protocol (SNMP) and cloud-based operating platform (Pallas).The mean time between failures (MTBF): more than 800,000 hours.
SWMD-H-16TG-4GSF-4SFP+

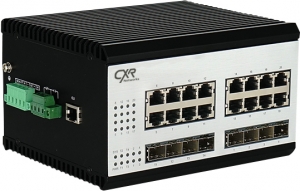

Hardened Layer 3 manageable switch, 16-Port Gigabit RJ45 + 4-Port Gigabit SFP + 4-port 10G/GE SFP+ Managed Industrial Switch (AC100-240V or DC36-72V) redundant dual power operating temperature: -40~85°C; lightning protection level of 6KV; IP40; DIN-rail installation)
