VCL-2145 G.811 PRC SSU and NTP PTP time server

VCL-2145 is an NTP time server and PTP Grand-Master, and a G.811 PRC / SSU synchronisation clock with GPS input. It embeds a high accuracy OCXO or Rubidium oscillator with G.812 hold-over performance

VCL-2145 PRC SSU et serveur NTP PTP



VCL-2145 provides synchronisation to many applications in public transportation for ticketing and signaling requirements, to utility distribution, to airport management and airflight control, to Internet and broadcast services, to landline telecom and LTE / 5G mobile networks, and banking transactions. VCL-2145 is also a PRC reference clock and a SSU synchronization distribution unit for SONET, SDH, PDH TDM networks.

VCL-2145 brings many benefits to those mission critical networks:

  • Time server : NTP, PTP, IRIG-B
  • G.811 PRC synchronisation : 1PPS, 1PPM, 10MHz, 2.048 MHz, 2,048 Mbps outputs
  • G.811 PRC accuracy when locked on GPS
  • SSU with GPS, 10MHz and 2.048M inputs
  • OCXO or Rubidium oscillator with G.812 hold-over
  • Compact 2U/19'' format with redundant power supply modules
  • 1x or 2x GPS inputs, +/-15nS accuracy
  • 4x NTP: NTP v2/v3/v4, IP v4/v6, MD5 authentication
  • 1x PTP : IEEE 1588 v2, 128 clients, Telecom and Utility Profiles
  • 1x 2.048 MHz : BNC, 75 Ohms
  • 1x 10MHz : BNC, 50 Ohms
  • 1x 1PPS : BNC
  • 1x NMEA 0183 : DB9, RS232
  • 1x IRIG-B BNC, 50 Ohms
  • 1x IRIG-B RJ45
  • 1x 1PPM, BNC
  • Managment : SSH, Https, Snmp v3, Syslog
  • Operating temperature range: -10 to +60°C
  • Alimentation: 1x or 2x 230 Vac, 48 Vdc
  • Typical power consumption : 18 W (OCXO) or 32 W (Rubidium)
  • Dimensions: 480 x 225 x 85 mm
  • Compliance : CE, EN-60950, EN-55022, EN55024, ROHS

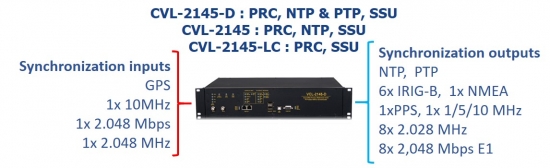

VCL-2145-D G.811 PRC clock, NTP and TP servers, PRC/SSU with 1PPS, 10MHz, 2.048 MHz, 2.048 Mbps outputs, 2x GPS inputs
VCL-2145  G.811 PRC clock, NTP server, PRC/SSU with 1PPS, 10MHz, 2.048 MHz, 2.048 Mbps outputs, 1x GPS input
VCL-2145-LC G.811 PRC/SSU with 1PPS, 10MHz, 2.048 MHz, 2.048 Mbps outputs, 1x GPS input
Options  OCXO or Rubidium oscillator, 1 or 2 power supply modules, GPS antenna, cable and lightning protection
